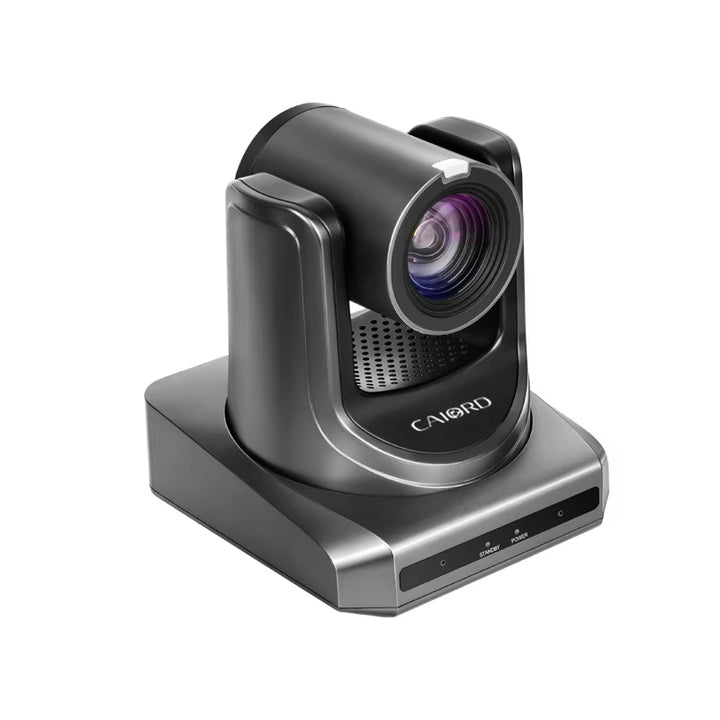

Caiord AI-400-20X 2K NDI PTZ Camera

$699.00

Caiord, a subsidiary brand under Xiamen Pathway Innovations Ltd., is dedicated to providing comprehensive live streaming solutions. Specializing in high-quality equipment for seamless streaming experiences, Caiord offers a range of professional products, including premium microphones, video switchers, and PTZ (Pan-Tilt-Zoom) cameras.

Our mission is to deliver a one-stop solution tailored to your live streaming needs, ensuring reliability, clarity, and user-friendly functionality. At Caiord, we understand the unique requirements of content creators and broadcasters, and we strive to empower your streaming experience with products that meet the highest industry standards.

Whether you are setting up for a large production or looking to enhance your personal streaming setup, Caiord has the perfect solution to elevate your live broadcasts.

Model: Caiord AI-400-20X

Caiord AI-400-20X
Caiord AI-400-20X-NDI
Add to WishlistCompare

amazon paymentsamerican expressapple paybitcoindankortdiners clubdiscoverdogecoindwollaforbrugsforeningeninteracgoogle payjcbklarnaklarna-pay-laterlitecoinmaestromasterpaypalshopify paysofortvisa
Ask a Question
SKU:
Availability : In Stock Pre order Out of stock
Categories: Live Streaming Solution
Description
Main Features

● 60.7° Wide-angle Lens + 20x Optical Zoom
60.7° high-quality ultra-wide-angle lens, optical zoom up to 20x, support 16x digital zoom.

● 1080P Full HD
Using 1/2.8-inch high-quality HD CMOS sensor with effective 2.07 million pixels, it can achieve high-quality images with a maximum resolution of 1920x1080.

● New ISP Image Processing Algorithm
The new generation of ISP image processing algorithm provides more complete white balance and automatic exposure functions, which significantly improves the image output performance of the camera, and the imaging effect is also better. Widely used in education recording and broadcasting, distance education, video conferencing, live broadcasting, broadcasting and other industries.

● Upgraded AI Technology
Using upgraded AI technology, through face recognition, it can accurately determine the location of people, realize automatic tracking and automatic frame selection.

● 1080P60
It supports 1080P60 FULL NDI® technology, ultra-low latency high-quality audio and video signal transmission, and can achieve unparalleled ultra-high-resolution image quality and lossless effects that are closer to vision.

● Leading Auto Focus Technology
Using advanced focusing algorithm, the lens can focus quickly, accurately and stably.

● Audio Processing Algorithm
The exclusive audio processing algorithm can eliminate reverberation, effectively reduce environmental noise, and support EQ adjustment to optimize sound effects; the device supports dual mic pickup, and can also be connected to external microphones, wireless bees, etc., to meet the pickup needs of most scenarios.

● Multiple Interfaces
Support HDMI and 3G-SDI interface, effective transmission distance of 3G-SDI is up to 150 meters (1080P30). HDMI, 3G-SDI, LAN can output three HD digital signals at the same time.

● Remote Control
Through the RS232 and RS485 serial ports, the camera can be controlled remotely
Camera
Signal System 1080P60, 1080P59.94, 1080P50, 1080I60, 1080I59.94, 1080I50, 1080P30, 1080P29.97, 1080P25, 720P60, 720P59.94, 720P50
Sensor 1/2.8 inch, CMOS,Effective pixels: 2.07M
Scanning Mode Progressive
Lens 20x, f = 4.42mm ~ 88.5mm, F1.8 ~ F2.8
Digital Zoom 16x
Minimum Illumination 0.5 Lux @ (F1.8, AGC ON)
Shutter 1/30s ~ 1/10000s
White Balance Auto, VAR, Manual,One Push, Indoor, Outdoor
Backlight Compensation Support
Digital Noise Reduction 2D & 3D Digital Noise Reduction
SNR ≥55dB
Horizontal FOV 60.7° ~ 3.36°
Vertical FOV 34.1° ~ 1.89°
Pan Angle ±170°
Tilt Angle -30° ~ +90°
Pan Speed 1.7° ~ 100°/s
Tilt Speed 1.7° ~ 69.9°/s
Image Flip Support
Image Freeze Support
Preset Position 255
Preset Accuracy 0.1°
Audio Features
Microphone Array Built-in dual microphones, 100Hz to 16KHz frequency response
Analog Audio
Input/Output		 Support 3.5mm Line-ln;
Support 3.5mm Line-Out
Digital Audio Output Support HDMl, USB, LAN, SDl, etc
USB Features
Operate System Windows 7/8/10, Mac OS X, Linux, Android
Color System /Compression YUY2/MJPEG/H.264
Video Format Support a variety of different frame rates and resolution video formats, up to 1080p60 YUY2 output
USB Audio 32K Sampling Rate, Support UAC 2.0
USB Video Protocol UVC 1.1/UVC 1.5
UVC PTZ Control Support
Network Features
Video Compression H.264
Video Stream First Stream, Second Stream
First Stream Resolution 1920x1080, 1280x720, 1024x576 etc
Second Stream Resolution 1280x720, 1024x576, 720x576 etc
Video Bit Rate 32Kbps ~ 20480Kbps
Bit Rate Control CBR, VBR
Frame Rate 1fps ~ 60fps
Audio Compression AAC
Audio Bit Rate 96Kbps, 128Kbps, 256Kbps
Protocols NDI®|HX2, TCP/IP, HTTP, RTSP, RTMP,RTMPS, Onvif, DHCP, Multicast, SRT,GB/T28281, etc; FULL NDI
Interfaces
Audio Interface 1 x LINE IN: 3.5mm Audio Interface
1 x LINE OUT: 3.5mm Audio Interface
Communication Interface 1 x RS485: 2pin phoenix port, Max Distance:1200m, Protocol: VISCA/Pelco-D/Pelco-P
1 x RS232 IN: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA/Pelco-D/Pelco-P
1 x RS232 OUT: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA network use only
Network Interface 1 x LAN: 10M/100M Adaptive Ethernet Port
HDMI Interface 1 x HDMI: Version 1.3
3G-SDI Interface 1 x 3G-SDI: BNC type,800mVp-p, 75Ω. Along to SMPTE 424M standard
USB Interface 1 x USB 3.0: Type A
Power Jack JEITA type (DC IN 12V)
General Specifications
Input Voltage DC 12V, PoE+ (802.3at)
Input Current Max. 1.5A
Operating Temperature 0°C ~ 40°C
Storage Temperature -40°C ~ 60°C
Power Consumption Max. 15W
Dimension 176.5mm x 139.2mm x 165.8mm
Net Weight About 1.5Kg
Additional Information
Model

Caiord AI-400-20X, Caiord AI-400-20X-NDI
