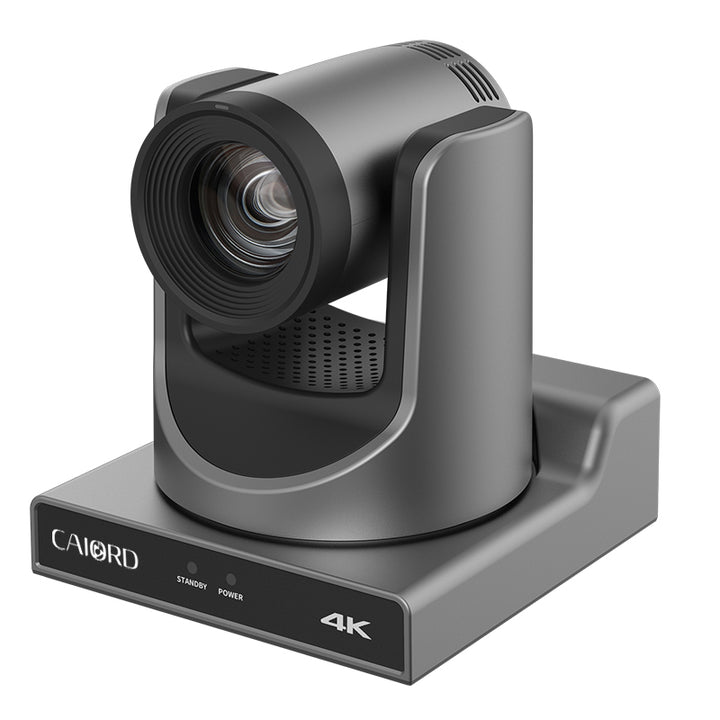

Caiord AI UHD SDI HDMI 4K NDI PTZ Camera
Caiord, a subsidiary brand under Xiamen Pathway Innovations Ltd., is dedicated to providing comprehensive live streaming solutions. Specializing in high-quality equipment for seamless streaming experiences, Caiord offers a range of professional products, including premium microphones, video switchers, and PTZ (Pan-Tilt-Zoom) cameras.
Our mission is to deliver a one-stop solution tailored to your live streaming needs, ensuring reliability, clarity, and user-friendly functionality. At Caiord, we understand the unique requirements of content creators and broadcasters, and we strive to empower your streaming experience with products that meet the highest industry standards.
Whether you are setting up for a large production or looking to enhance your personal streaming setup, Caiord has the perfect solution to elevate your live broadcasts.
Description
| Main Features | ● AI tracking With the help of the AI computing power of the chip, the camera is equipped with advanced AI algorithms to realize monocular humanoid tracking, which can realize automatic tracking of scenes such as education, conferences and live broadcasts. ● NDI|HX2 NDI|HX2 has the characteristics of low delay and plug and play, which is convenient for project implementation and deployment. It has a good ecology and supports the simultaneous transmission of audio, video and control commands. It is a new generation of network video transmission mode. ● 4K UHD The new generation of Sony 1 / 1.8-inch high-quality UHD CMOS sensor with a maximum of 8.42 million pixels can realize 4K (3840x2160) ultra-high-resolution high-quality images. And downward compatible with 1080p, 720p and other resolutions. ● 20x optical zoom It adopts 4K ultra long focal lens with high quality and 8 million ultra-high resolution, 20 times optical zoom, and the maximum field angle is 60 ° ● HDMI2. 0 Support hdmi2 0 interface, which can directly output 4kp60 uncompressed digital video. ● Low illumination The new CMOS image sensor with ultra-high signal noise ratio can effectively reduce the image noise under low illumination. The application of 3D noise reduction algorithm can greatly reduce the image noise. Even under ultra-low illumination, the picture remains clean and clear, and the image signal-to-noise ratio is more than 55dB. ● Rich and perfect interfaces Support hdmi2 0 HD output, equipped with 3g-sdi interface, 3G-SDI effective transmission range up to 150 m (1080p30). HDMI or 3g-sdi, USB and LAN can output 3 HD digital signals at the same time. ● Remote control Multiple control modes, RS232, RS485, network and USB can be used to control the camera. ● Gravity sensor It supports the automatic image flipping function, which is convenient for engineering installation and use. |
|
| Model | Caiord AI-20UHD | |
| Name | 4K PTZ Camera | |
| Camera | ||
| Video System | HDMI：4K@60fps,4K@59.94fps, 4K@50fps,4K@30fps, 4K@25fps, 4K@29.97fps, 1080P@60fps, 1080P@50fps, 1080I@60fps,1080I@50fp, 1080P@30fps,1080P@59.94fps,1080I@59.94fps, 1080P@29.97fps, 720P@60fps,720P@59.94fps. 3G-SDI:1080p/60, 1080p/50, 1080p/30, 1080p/29.97, 1080p/59.94, 1080p/25; 1080i/60, 1080i/50, 1080i/59.94fps; 720p/60, 720p/59.94; |
|
| Sensor | 1 / 1.8-inch high-quality UHD CMOS sensor with a maximum of 8.42 million pixels | |
| Scanning Mode | Progressive scanning | |
| Lens | 20x, f = 6.25mm ~ 125mm, F1.58 ~ F3.95 | |
| Digital Zoom | 16x | |
| Minimal Illumination | 0.5Lux @ (F1.8, AGC ON) | |
| Shutter | 1/30s ~ 1/10000s | |
| White Balance | Automatic, indoor, outdoor, one touch, manual，VAR | |
| Backlight Compensation | Supported | |
| Digital Noise Reduction | 3D digital noise reduction | |
| Video S/N | ≥55dB | |
| Horizontal Angle of View | 60° ~ 3.5° | |
| Horizontal Angle of View | 35.7° ~ 2.0° | |
| Horizontal Rotation Range | ±170° | |
| Vertical Rotation Range | -30° ~ +90° | |
| Pan Speed Range | 1.7° ~ 100°/s | |
| Tilt Speed Range | 1.7° ~ 69.9°/s | |
| H & V Flip | Supported | |
| Image Freeze | Supported | |
| PoE | Supported | |
| Number of Preset | 255 | |
| Preset Accuracy | 0.1° | |
| USB Featured | USB2.0 | |
| Operate System | Windows 7, Windows 8, Windows 10, Windows 11, Mac OS X, Linux, Android | |
| Color System / Compression | YUY2 / H.264 / MJPEG | |
| Video Format | YUY2 :MAX 1080P@5fps H.264 AVC: MAX 2160P@30fps MJPEG:MAX 2160P@30fps |
|
| Audio on USB | Supported | |
| USB Video Communication Protocol | UVC 1.1~1.5 | |
| UVC PTZ | Supported | |
| Network Features | ||
| Video Compression | H.264/MJPEG | |
| Video Stream | First streaming, second streaming | |
| Main Stream Resolution | 3840x2160, 1920x1080, 1280x720, 1024x576等 | |
| Sub Stream Resolution | 720x480, 320x240等 | |
| Video Bit Rate | 32kbps~51200kbps（Second Way：32kbps~20480kbps） | |
| Bit Rate Type | Variable bit rate，Fixed bit rate | |
| Frame Rate | 50Hz: 1fps~50fps, 60Hz:1fps~60fps | |
| Audio Compression | AAC | |
| Audio Bit Rate | 96Kbps,128Kbps | |
| Support protocols | NDI®|HX2, SRT, TCP/IP,HTTP,RTSP,RTMP(s),Onvif,DHCP,Multicast and so on | |

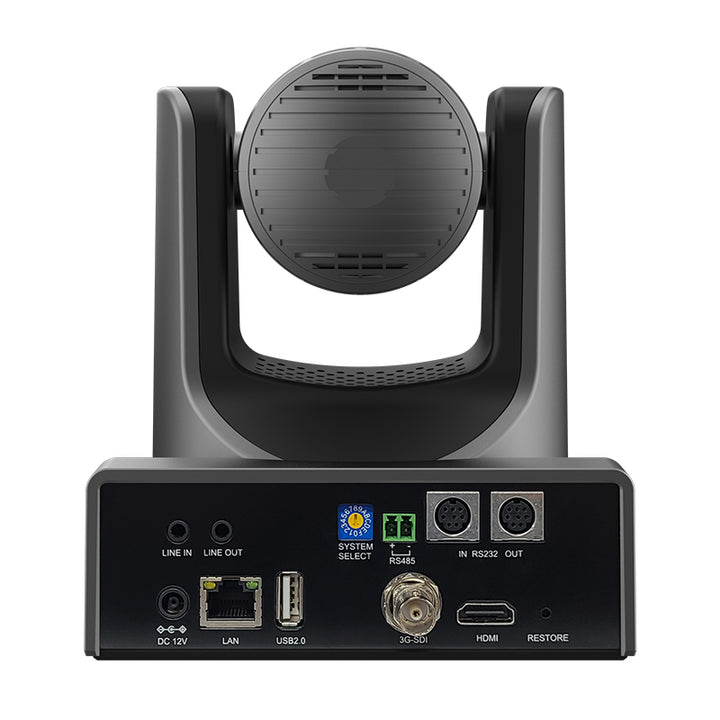

| Input/Output Interface | ||
| HD Output | 1xHDMI: 2.0 Video format：4K@25/30/50/60/59.94/29.97fps; 1080P@25/30/50/60/59.94/29.97fps; 1080I@50/60/59.94/29.97fps； 720P@50/60/59.94fps Remarks：4KP60 HDMI output only supports YUV420 |
|
| 1x3G-SDI: BNC type, 800mVp-p, 75Ω, Comply with SMPTE 424m standard. Video format：1080P@25/30/50/60/59.94/29.97fps; 1080I@50/60/59.94fps; 720P@50/60fps |
||
| Network Interface | 1xRJ45: 10M/100M/1000M Adaptive Ethernet | |
| Audio Interface | 1-ch , 3.5mm Audio Interface, Line In； | |
| 1-ch , 3.5mm Audio Interface, Line Out； | ||
| 1-ch，USB2.0, Type-A(Can be configured as Host or Device by software) | ||
| Communication Interface | 1xRS232 In: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA/Pelco-D/Pelco-P | |
| 1xRS232 Out: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA network use only | ||
| 1xRS485: 2pin Phoenix Port, Max Distance: 1200m, Protocol: VISCA/Pelco-D/Pelco-P | ||
| RESTORE | Support | |
| Power Jack | JEITA type (DC IN 12V) | |
| Generic Specification | ||
| Installation Direction | Mounting, Ceiling Mounting | |
| Tally Lamp | 1PCS (Red and Green) | |
| Power Indicator | 1PCS(Blue） | |
| Status Indicator | 1PCS (Yellow) | |
| IR Remote Control | Support | |
| Dial | Support | |
| Input Voltage | DC 12V /POE+ | |
| Input Cur | 2A（MAX） | |
| Operating Temperature | 0°C ~ 40°C | |
| Storage Temperature | -40°C ~ 60°C | |
| Power Consumption | MAX 18W | |
| Size | 169mm x 142mm x 175mm | |
| Net Weight | About 1.5Kg | |
Additional Information
| Model |
Caiord AI-12UHD, Caiord AI-20UHD |
|---|
Caiord AI UHD SDI HDMI 4K NDI PTZ Camera
$1,199.00
