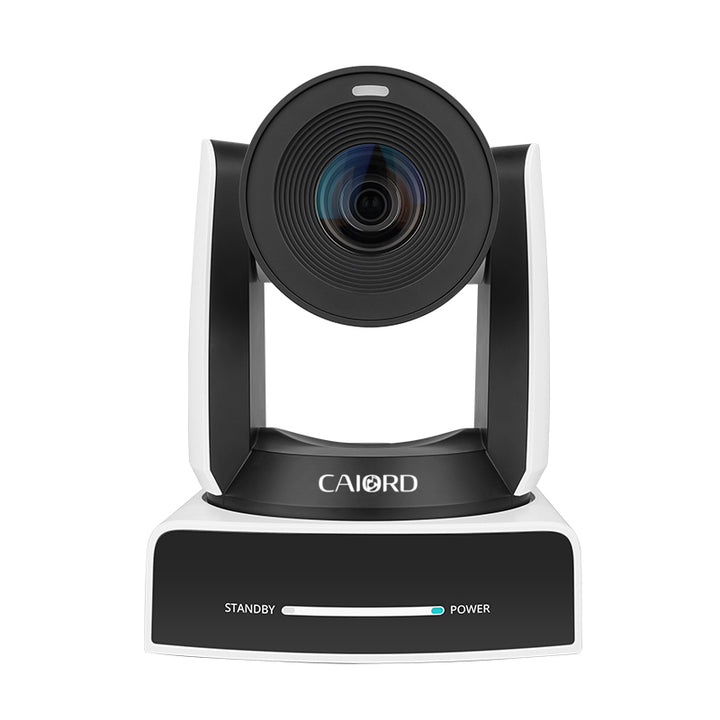

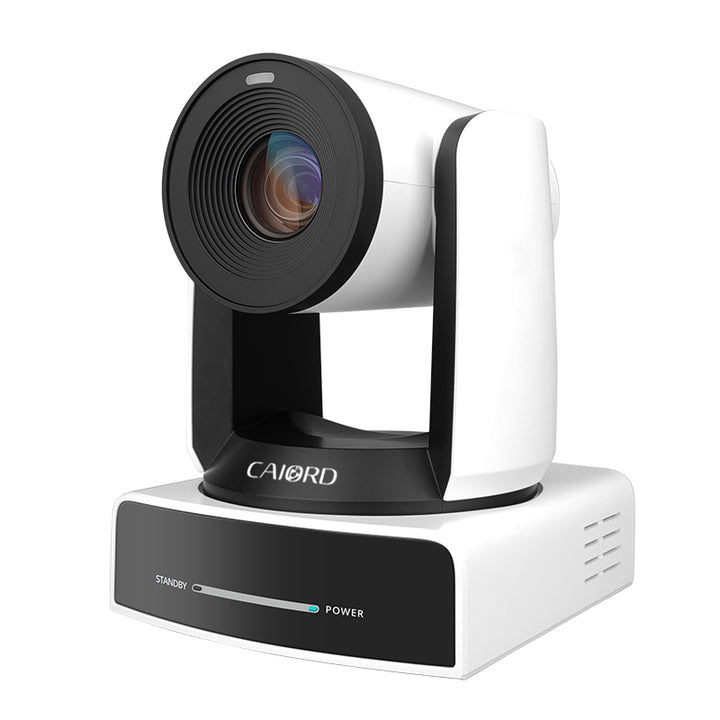

Caiord AI 30X UHD SDI HDMI 4K NDI PTZ Camera
Caiord, a subsidiary brand under Xiamen Pathway Innovations Ltd., is dedicated to providing comprehensive live streaming solutions. Specializing in high-quality equipment for seamless streaming experiences, Caiord offers a range of professional products, including premium microphones, video switchers, and PTZ (Pan-Tilt-Zoom) cameras.
Our mission is to deliver a one-stop solution tailored to your live streaming needs, ensuring reliability, clarity, and user-friendly functionality. At Caiord, we understand the unique requirements of content creators and broadcasters, and we strive to empower your streaming experience with products that meet the highest industry standards.
Whether you are setting up for a large production or looking to enhance your personal streaming setup, Caiord has the perfect solution to elevate your live broadcasts.
Description
| Caiord AI-30UHD | |
| 4K UHD 60°lens，30X optical zoom | |
| UHD 4KP60 | |
| Supported AI Human Shape Tracking | |
| Main Features |
●AI tracking With the help of the AI computing power of the chip, the monocular human shape tracking based on advanced AI algorithm, combined with convenient tracking settings, can be used in a variety of scenes such as education, conference and live broadcast to realize the intelligent guide function. ●NDI|HX2 NDI|HX2 has the characteristics of low delay and plug and play, which is convenient for project implementation and deployment. It has a good ecology and supports the simultaneous transmission of audio, video and control commands. It is a new generation of network video transmission mode. ●4K UHD The new generation of Sony 1 / 1.8-inch high-quality UHD CMOS sensor with a maximum of 8.42 million pixels can realize 4K (3840x2160) ultra-high-resolution high-quality images. And downward compatible with 1080p, 720p and other resolutions. ●30x optical zoom It adopts 4K ultra long focal lens with high quality and 8 million ultra-high resolution. 30 times optical zoom, and the maximum field angle is 60 ° ●HDMI2.0 Support hdmi2 0 interface, which can directly output 4kp60 uncompressed digital video. ●Low illumination The new CMOS image sensor with ultra-high signal noise ratio can effectively reduce the image noise under low illumination. The application of 3D noise reduction algorithm can greatly reduce the image noise. Even under ultra-low illumination, the picture remains clean and clear, and the image signal-to-noise ratio is more than 55dB. ●Rich and perfect interfaces Support hdmi2 0 HD output, equipped with 3g-sdi interface, with an effective transmission distance of up to 150m (1080p30). HDMI or 3g-sdi, USB and LAN can output 3 HD digital signals at the same time. ●Remote control Multiple control modes, RS232, RS485, network and USB can be used to control the camera. ●Gravity sensor It supports the automatic image flipping function, which is convenient for engineering installation and use. |
| Name | Caiord AI-30UHD |
| Camera | |
| Video System | 4K@60fps,4K@59.94fps, 4K@50fps,4K@30fps, 4K@25fps, 4K@29.97fps, 1080P@60fps, 1080P@50fps, 1080I@60fps,1080I@50fp, 1080P@30fps,1080P@25FPS.1080P@59.94fps,1080I@59.94fps, 1080P@29.97fps, 720P@60fps,720P@59.94fps.720P@50fps |
| Sensor | 1 / 1.8-inch high-quality UHD CMOS sensor with a maximum of 8.42 million pixels |
| Scanning Mode | Progressive scanning |
| Lens | 30x, f = 7.1mm~210mm , F1.61～ F5.19 |
| Minimal Illumination | 0.5Lux @ (F1.8, AGC ON) |
| Shutter | 1/30s ~ 1/10000s |
| White Balance | Automatic, indoor, outdoor, one touch, manual |
| Backlight Compensation | Supported |
| Digital Noise Reduction | 3D digital noise reduction |
| Video S/N | ≥55dB |
| Horizontal Angle of View | 59.2° ~ 2.5° |
| Vertical Angle of View | 34.6° ~ 1.4° |
| Horizontal Rotation Range | ±170° |
| Vertical Rotation Range | -30° ~ +90° |
| Pan Speed Range | 1.7° ~ 100°/s |
| Tilt Speed Range | 1.7° ~ 69.9°/s |
| H & V Flip | Supported |
| Image Freeze | Supported |
| PoE | Supported |
| Number of Preset | 255 |
| Preset Accuracy | 0.1° |
| USBFeatured | |
| Operate System | Windows 7, Windows 8, Windows 10, Mac OS X, Linux, Android |
| Color System / Compression | H.264 / MJPEG /H.265 |
| Video Format | YUY2：MAX 1080@30fps H.264 AVC: MAX2160P@30fps H.264 SVC: MAX2160P@30fps H.265 SVC: MAX2160P@30fps MJPEG: MAX4K@30fps |
| Audio on USB | Supported |
| USB Video Communication Protocol | UVC 1.1~1.5 |
| UVC PTZ | Supported |
| Network Features | |
| Video Compression | H.264/MJPEG |
| Video Stream | First streaming, second streaming |
| Main Stream Resolution | 3840x2160, 1920x1080, 1280x720, 1024x576 |
| Sub Stream Resolution | 720x576, 720x480, 320x240,etc (*) |
| Video Bit Rate | 32kbps~102400kbps |
| Bit Rate Type | Variable bit rate，Fixed bit rate |
| Frame Rate | 50Hz: 1fps~50fps, 60Hz:1fps~60fps |
| Audio Compression | AAC、G711 |
| Audio Bit Rate | 96Kbps,128Kbps |
| Support protocols | NDI®|HX2, SRT, TCP/IP,HTTP,RTSP,RTMP,Onvif,DHCP,Multicast and so on |

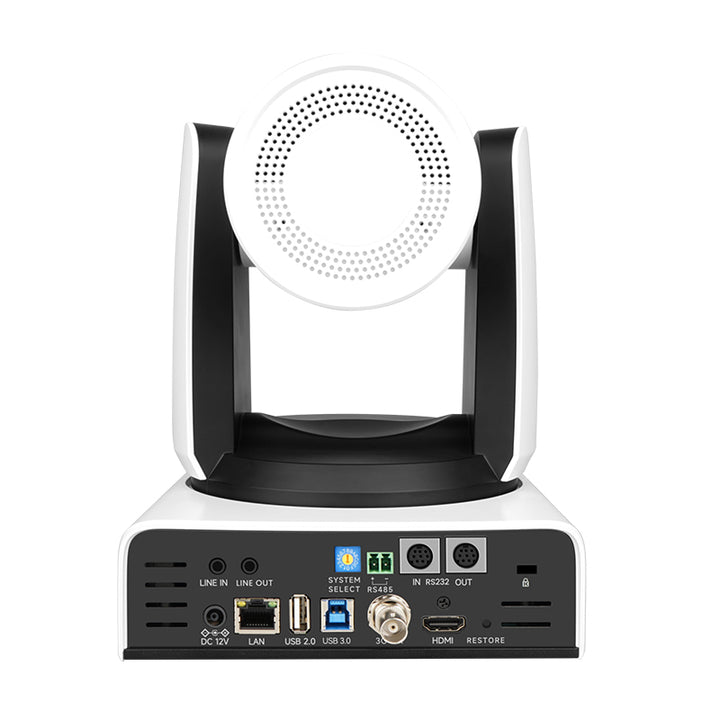

| Input/Output Interface | |
| HD Output | 1x, HDMI: 2.0 Video format：4K@25/30/50/60/59.94/29.97fps; 1080P@25/30/50/60/59.94/29.97fps;1080I@50/60/59.94/29.97fps； 720P@50/60/59.94fps Notes：4KP60/50/59.94 HDMI output only support YUV420 |
| 1x, 3G-SDI: BNC type, 800mVp-p, 75Ω, follow SMPTE 424M standard video format：1080P@25/30/50/60/59.94/29.97fps; 1080I@50/60/59.94fps; 720P@50/60fps |
|
| Network Interface | 1x, RJ45: 10M/100M/1000M Adaptive Ethernet |
| Audio Interface | 1x, Line In, 3.5mm audio Interface； |
| USB | 1x，USB3.0, Type-B (optional) 1x，USB2.0, Type-A |
| Communication Interface | 1x, RS232 In: 8pin Min DIN, Max Distance: 30m, VISCA/Pelco-D/Pelco-P |
| 1x, RS232 Out: 8pin Min DIN, Max Distance: 30m, VISCAnetwork use only | |
| 1x, RS485: 3 core phoenix mouth , Max Distance: 1200m, VISCA/Pelco-D/Pelco-P | |
| RESTORE | Supported |
| Power Jack | JEITA Type（DC IN 12V） |
| Generic Specification | |
| Installation Direction | Mounting, Ceiling Mounting |
| TALLY Light | 1PCS (Red and Green) |
| Power Light | 1PCS(Blue） |
| Status Light | 1PCS (Green) |
| IR Remote control input | Supported |
| Input Voltage | DC 12V / POE+ |
| Operating Temperature | 0°C ~ 40°C |
| Storage Temperature | -40°C ~ 60°C |
| Power Consumption | MAX 18W |
| Size | 170mm(W) x 228mm(H) x 181mm(D) |
| Net Weight | ≈2.0KG |
Additional Information
| Model |
Caiord AI-30UHD |
|---|
Caiord AI 30X UHD SDI HDMI 4K NDI PTZ Camera
$1,999.00
