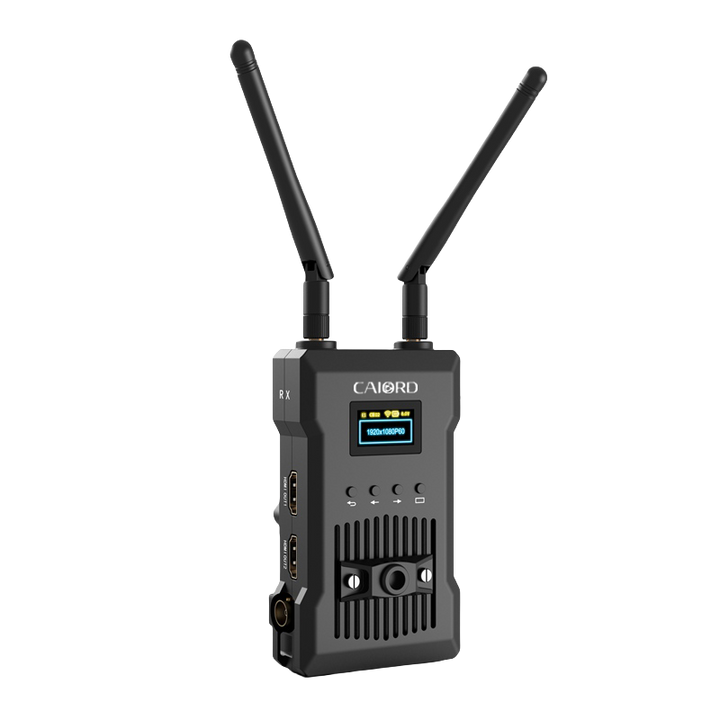

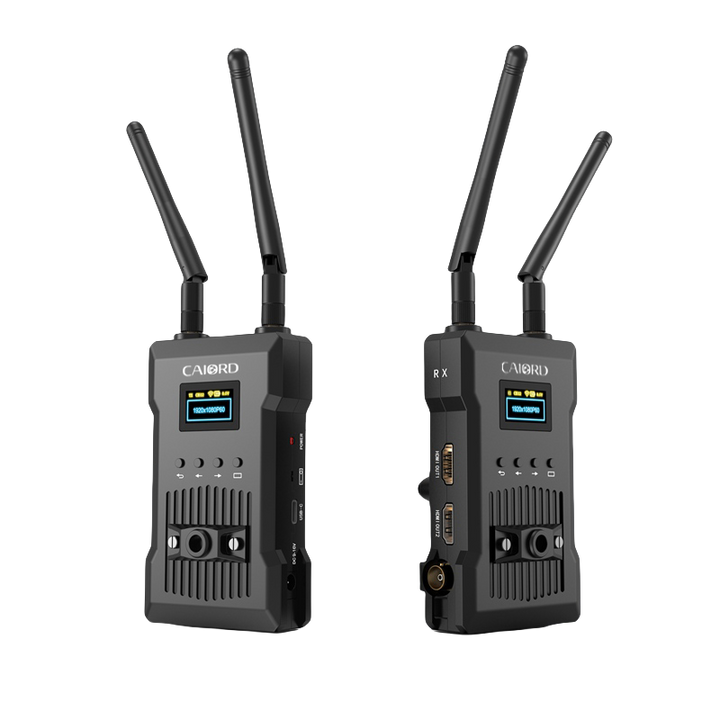

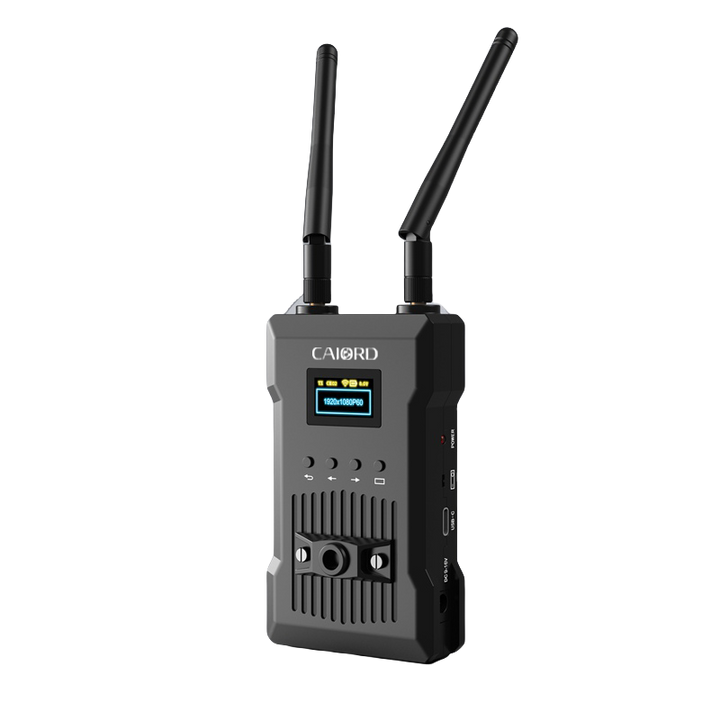

Caiord K40 PRO Seamless Transmission System
Caiord, a subsidiary brand under Xiamen Pathway Innovations Ltd., is dedicated to providing comprehensive live streaming solutions. Specializing in high-quality equipment for seamless streaming experiences, Caiord offers a range of professional products, including premium microphones, video switchers, and PTZ (Pan-Tilt-Zoom) cameras.
Our mission is to deliver a one-stop solution tailored to your live streaming needs, ensuring reliability, clarity, and user-friendly functionality. At Caiord, we understand the unique requirements of content creators and broadcasters, and we strive to empower your streaming experience with products that meet the highest industry standards.
Whether you are setting up for a large production or looking to enhance your personal streaming setup, Caiord has the perfect solution to elevate your live broadcasts.
4K Ultra HD Wireless Transmission,0.06S Ultra Low Latency This wireless HD/SDI transmitter and receiver support up to 4K30 video resolution, transmitting video from the transmitter to the receiver through the 5G transmission channels. It enables you to enjoy high-quality, noise-free, and crystal-clear images on a large screen, with impeccable audio. Note: Real-time gaming may experience a 0.06-second delay.
UP to 1000ft Transmission Range & 2 APP Monitoring With external dual-gain antennas,which provides faster transmission speeds and stronger anti-interference capabilities. It can transmit over long distances, and the open transmission distance can reach up to 1000 ft. APP monitoring supports both Android and iOS system app monitoring, up to 4 phones or tablets real-time monitoring with professional monitor functions.
Support Up to 1TX to 4RX This wireless HD transmitter and receiver can support 1TX to 4RX (Max) for multiple screens, add more RX as needed (eg: buy 1x2, 1x3, 1x4) 2 TVs, Receiver for 3 TVs, 4 TVs). Note: With the increase of RX, the wireless transmission distance will become shorter. The transmitter supports HD/SDI input and HD loop out. The receiver supports dual HD output and SDI output.
Plug & Play, 3 Power Options Wireless HD Transmitter and Receiver is quick and easy to set up, no software installation required, get up and running in minutes. Wireless HD Extender Kit support with 3 type of power supplies:5V/2A USB Type-C power input, DC 9~16V power input, L series battery input: NP-F970/F750/F550 batteries. Note: Product Package doesn't include any battery.
Wide Compatibility This wireless video HD/SDI display kit works with TVs and projectors that have HD/SDI input. The unit connects wirelessly to most cable, satellite, Blu-ray, set-top boxes, DVRs, laptops, TVs, monitor AV receivers, computer systems and other media via the HD/SDI output. Widely used in weddings, conferences, live streaming, sports events, home entertainment and other occasions
| Project | Parameter |
| Power Consumption | TX: 4W; RX: 4W |
| Powered Supply | DC 9-16V, Type-C 5V/2A; NP-F970/750/550 battery(Not included) |
| Working Frequency | 9 kinds of 5G frequency bands |
| Channel Bandwidth |
40M |
| Support Port | TX:SDI/HDMI input and HDMI loopout RX: SDI output and HDMI dual output |
| HDMI Input/ Output Support Resolution | 4K30, 4K25, 1080P60, 1080P50,1080P30,1080P25,1080I60, 1080I 50, 720P60,720P50 |
| SDI Input/ Output Support Resolution | 1080P60, 1080P50,1080P30,1080P25,1080I60, 1080I 50, 720P60,720P50 |
| Operating Temperature | 0-50℃ |
| Latency | 0.06s |
| Transmission distances(Open Conditions) | more than 300m(985ft) |
| Dimensions(subject to the actual object) | 67mmX 42mmX 120mm |
