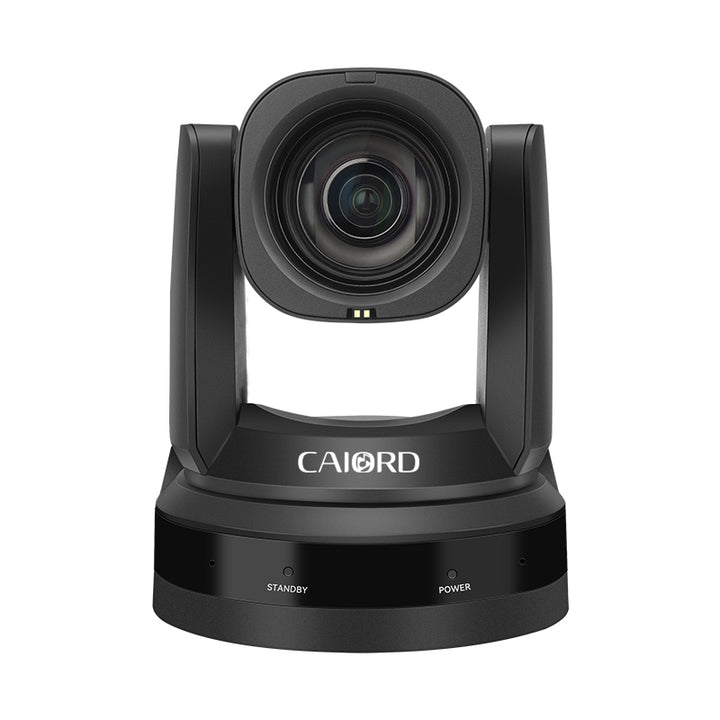

Caiord Vertical-400-12X
Caiord, a subsidiary brand under Xiamen Pathway Innovations Ltd., is dedicated to providing comprehensive live streaming solutions. Specializing in high-quality equipment for seamless streaming experiences, Caiord offers a range of professional products, including premium microphones, video switchers, and PTZ (Pan-Tilt-Zoom) cameras.
Our mission is to deliver a one-stop solution tailored to your live streaming needs, ensuring reliability, clarity, and user-friendly functionality. At Caiord, we understand the unique requirements of content creators and broadcasters, and we strive to empower your streaming experience with products that meet the highest industry standards.
Whether you are setting up for a large production or looking to enhance your personal streaming setup, Caiord has the perfect solution to elevate your live broadcasts.
Description
| Caiord Vertical-400-12X Specification | ||
| Main Feature |
● Full-Function USB Interface The fully functional USB interface is compatible with USB 3.0 and USB 2.0, supporting UVC v1.1 and UAC 1.0 protocols. It allows output of both raw and encoded video images. ●1080P Full HD Equipped with the latest generation Panasonic 1/2.8-inch high-quality HD CMOS sensor with 2.07 million effective pixels, it delivers superior image quality with a maximum resolution of 1920x1080. With a frame rate of up to 60 fps, it presents sharp, realistic HD video, vividly capturing facial expressions and movements. ●72.5° Wide-Angle Lens Features a 72.5° high-quality ultra-wide-angle lens with 12x optical zoom. ●Low Light Performance The new CMOS image sensor with ultra-high signal-to-noise ratio effectively reduces noise in low-light conditions. Combined with 2D and 3D noise reduction algorithms, it significantly minimizes image noise, ensuring clean and clear images even in extremely low-light environments, with an image SNR of over 55dB. ●Remote Control The camera can be controlled via RS232. ●Advanced Autofocus Technology Utilizing an advanced focusing algorithm and a TOF module for focus assistance, the lens achieves fast, accurate, and stable autofocus. ●Versatile Video Interfaces Supports HDMI, USB 3.0, and network audio/video output. ●Portrait Mode Supports portrait (vertical) output. ●Easy to use No driver installation required. USB output is plug-and-play, offering a simple and convenient user experience. ●Dual Power Supply Options Supports both USB 5V power supply and 12V power supply. |
|
| Model | Caiord Vertical-400-12X | |
| Destription | USB3.0 HD LIVE STREAMING VERTICAL PTZ CAMERA | |
| Camera | ||
| Signal System | 1080P60，1080P50，1080P30，1080P25，720P60，720P50 | |
| Sensor | 1/2.8-inch CMOS sensor with 2.07 million effective pixels. | |
| Scanning Method | Progressive Scanning | |
| Lens | 12x, f3.5mm ~ 42.3mm, F1.8 ~ F2.8 | |
| Minimum Illumination | 0.5Lux @ (F1.8, AGC ON) | |
| Shutter | 1/30s ~ 1/10000s | |
| White Balance | Automatic, 3000K/Indoor, 4000K, 5000K/Outdoor, 6500K_1, 6500K_2, 6500K_3, One-Button, Manual. | |
| Backlight Compensation | Support | |
| Digital Noise Reduction | 2D & 3D Digital Noise Reduction | |
| Signal-to-Noise Ratio (SNR) | ≥55dB | |
| Horizontal Field of View (FOV) | 72.5° ~ 6.9° | |
| Vertical field of view angle | 44.8° ~ 3.9° | |
| Horizontal Pan Range | ±170° | |
| Vertical Tilt Range | -30° ~ +90° | |
| Horizontal Pan Speed Range | 2.7° ~ 35.7°/s | |
| Vertical Tilt Speed Range | 2.7° ~ 31.5°/s | |
| Horizontal and Vertical Flip | Support | |
| Image Freeze | Support | |
| Preset Positions | 255 | |
| Preset Position Accuracy | 0.1° | |
| USB Feature | ||
| Operation System support | Windows 7, Windows 8, Windows 10, Mac OS X, Linux, Android | |
| Color Space/Compression | YUY2 / MJPEG | |
| Video Standard | YUY2 : Maximum 1080P@30fps MJPEG: 1080P@30fps |
|
| USB Audio | UAC1.0 | |
| USB Video Class (UVC) Protocol | UVC 1.1 | |
| UVC PTZ Control | Support | |
| IPC Feature | ||
| Video Compression Standard | H.264/MJEPG | |
| Video Bitstream | Primary Stream, Secondary Stream | |
| Primary Stream Resolution | 1920x1080,1280x720,1024x576,960x540,640x480,640x360 | |
| Secondary Stream Resolution | 1280x720,1024x576,720x576(50Hz), 720x480(60Hz),720x408,640x360,480x270,320x240,320x180 | |
| Video Bitrate | 32Kbps ~ 20480Kbps | |
| Bitrate Control | Variable Bitrate, Fixed Bitrate | |
| Frame Rate | 50Hz: 1fps ~ 25fps, 60Hz: 1fps ~ 30fps | |
| Audio Compression Standard | AAC | |
| Audio Bitrate | 96Kbps, 128Kbps, 256Kbps | |
| Potocal | TCP/IP, HTTP, RTSP, RTMP, Onvif, DHCP, Multicast, etc. | |
| Input and Output Interfaces | ||
| USB Interface | 1 Channel,USB 3.0 Device, Type-C | |
| HD Output | 1Channel，HDMI1.4b | |
| Network Interface | 1Channel：RJ45：10M/100M Auto-Negotiation Ethernet Port | |
| Audio Interface | 1 Channel, Line In, 3.5mm Audio Interface | |
| Communication Interface | 1 Channel, RS232 In: 8-pin Mini DIN, Maximum Distance: 30 meters, VISCA/Pelco-D/Pelco-P Protocol | |
| Power Interface | JEITA Type (DC IN 12V) / USB Type-C (DC IN 5V) | |
| General Specifications | ||
| Input Voltage | DC 12V/DC 5V | |
| Output Voltage | 12V 1.0A(Maximum)/5V 1.5A(Maximum) | |
| Operating Temperature | -10°C ~ 40°C | |
| Storage Temperature | -40°C ~ 60°C | |
| Power Consumption | 12W（Maximum） | |
| Mean Time Between Failures (MTBF) | >30000hours | |
| Size | 142*152*176 | |
| Net weight | 1.46kg | |
