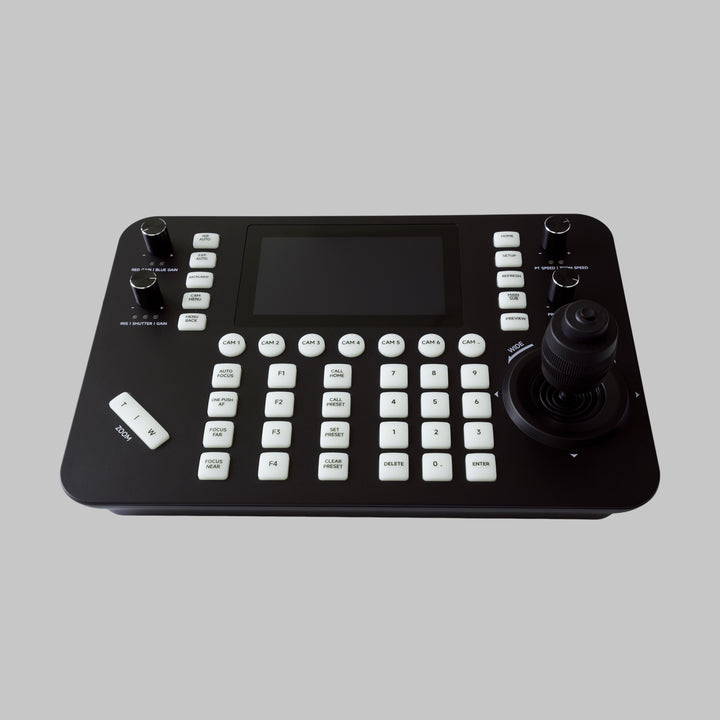

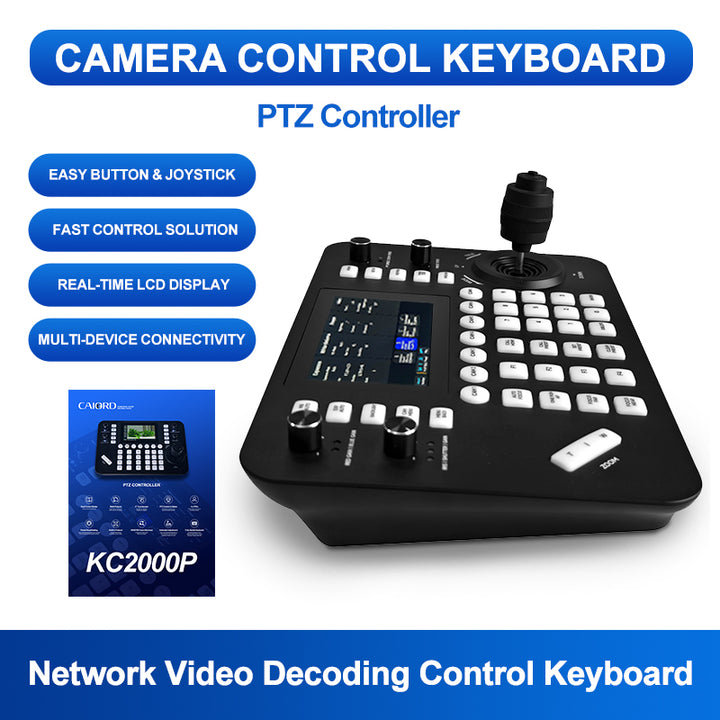

Caiord KC2000P PTZ Controller
Caiord, a subsidiary brand under Xiamen Pathway Innovations Ltd., is dedicated to providing comprehensive live streaming solutions. Specializing in high-quality equipment for seamless streaming experiences, Caiord offers a range of professional products, including premium microphones, video switchers, and PTZ (Pan-Tilt-Zoom) cameras.
Our mission is to deliver a one-stop solution tailored to your live streaming needs, ensuring reliability, clarity, and user-friendly functionality. At Caiord, we understand the unique requirements of content creators and broadcasters, and we strive to empower your streaming experience with products that meet the highest industry standards.
Whether you are setting up for a large production or looking to enhance your personal streaming setup, Caiord has the perfect solution to elevate your live broadcasts.

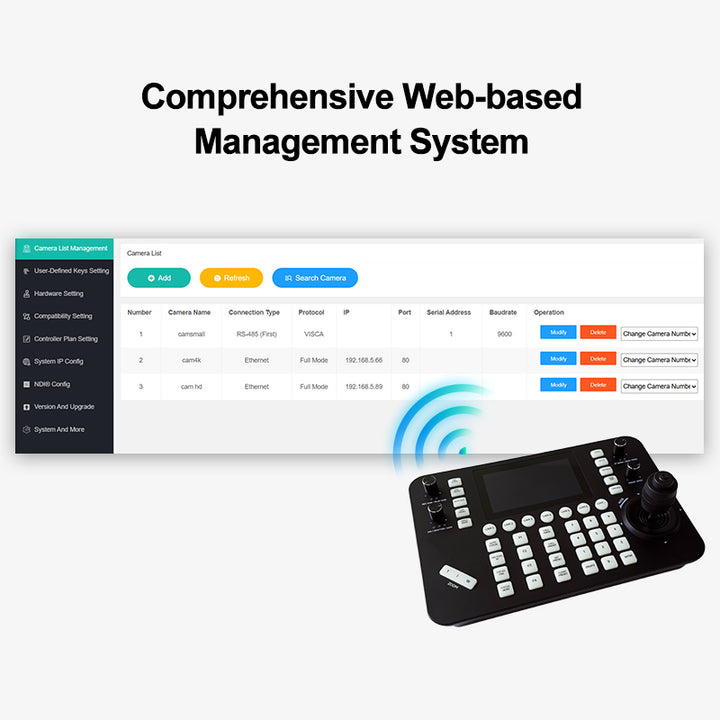

| Functions | 1. Supports dual control modes via network and serial port 2. Compatible with multiple control protocols: VISCA, VISCA over IP, ONVIF, Pelco-D/P, with optional support for NDI protocol 3. Equipped with a 5-inch touchscreen (1280×720 resolution), supporting H.264/H.265 video decoding up to 4K\@60fps 4. Supports full-feature control and status display for specific camera brands (customizable) 5. Configured with 4 programmable function keys for user-defined shortcut operations 6. Comprehensive web-based management system 7. Supports quick call/set of presets and creation of custom control schedules, enabling multi-camera linkage and soft cruise 8. Built-in command compatibility configuration system to effectively resolve command differences across brands 9. Supports automatic discovery of ONVIF/NDI devices and provides IP configuration for select camera brands (customizable) 10. Integrated professional adjustment knobs for quick tuning of exposure, shutter, iris, gain, white balance, focus, and more 11. Features a four-dimensional variable-speed joystick with pressure-sensitive control for precise PTZ movement and zoom based on pressure applied 12. Independent speed adjustment knobs for separately setting PTZ movement, zoom, and preset recall speeds 13. Full-keyboard backlight design with independent backlight switch control |
| Spec | |
| Protocal | VISCA、VISCA over IP、ONVIF、Pelco-D、Pelco-P、NDI (Optional) |
| Controller PTZ units | 999 |
| Joystick | Four-dimensional Joystick |

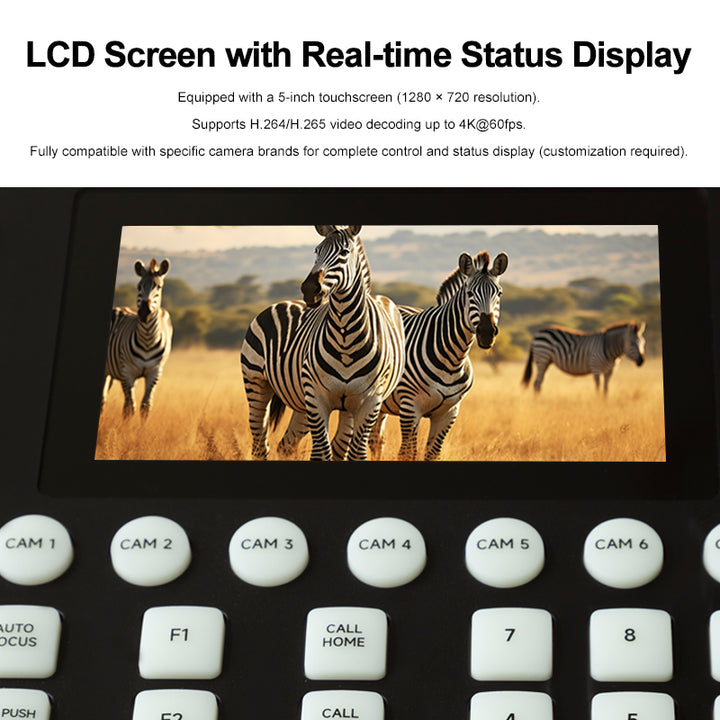

| Screen | 5-inch TFT LCD with 1280×720 resolution, supports touch input |
| Decoding support | H.264、H.265，up to 4K@60fps |
| Knob/Button direct control functions | Auto Exposure Mode: Supports adjustment of iris, shutter, and gain values Backlight Compensation: On/Off switch available |
| White Balance: Auto mode with red and blue gain adjustment | |
| Auto focus mode, one-touch focus mode, and manual focus adjustment | |
| Adjustable speed for PTZ movement, lens zoom, and preset recall | |
| Preset setting, recall, and deletion | |
| Camera menu control | |
| Camera status refresh | |
| Video stream preview toggle and stream switching control | |

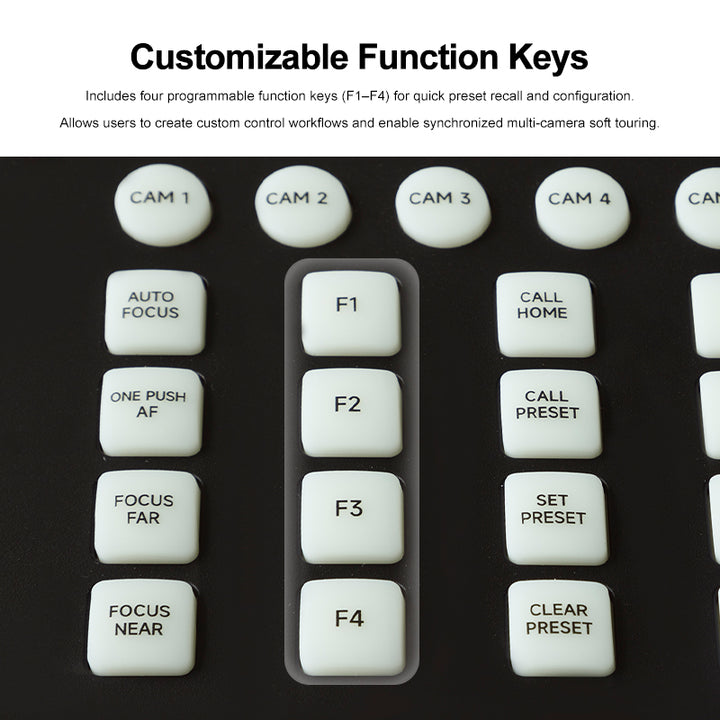

| F1–F4 programmable custom function shortcut keys | |
| Input&Output | 1 x RS232 port for camera control |
| 1 x RS485/RS422 port for camera control | |
| 1 x RJ45 port, supports PoE power supply | |
| 1 x USB-A, OTG interface | |
| 1 x DC 12V | |
| General Specifications | |
| Input voltage | DC 12V/PoE(802.3af) |
| Input current | 1A |
| Work Temp | -10°C ~ 60°C |
| Storage Temp | -20°C ~ 70°C |
| Size | 305 × 205 × 110 |
| Weight |
1.05Kg |
| Model |
KC2000P |
|---|
